� In-line pressure filters offer biological and mechanical filtration that can be located remotely

� Oase FiltoClear provides mechanical and biological filtration with ultraviolet clarification (UVC)

� Compact, high-capacity filter is perfect for Fountain, Formal Spillway, Pond-free and Water Garden applications

� The high quality, impact resistant body can be buried to the clamping ring

� 3 densities of replaceable filter foams, new plates and extra supports improve cleaning function and ensure long service life

� 2-way Valve backflushes filter and directs waste with Easy-Clean Technology, no need to open filter or remove the cover

� Monitor UVC, filter performance and pollutant level and change UV lamp all without opening filter

� Newly developed bypass technology ensures constant water flow and prevents the filter from becoming clogged.

� FiltoCap perfectly camouflages FiltoClears in the landscape

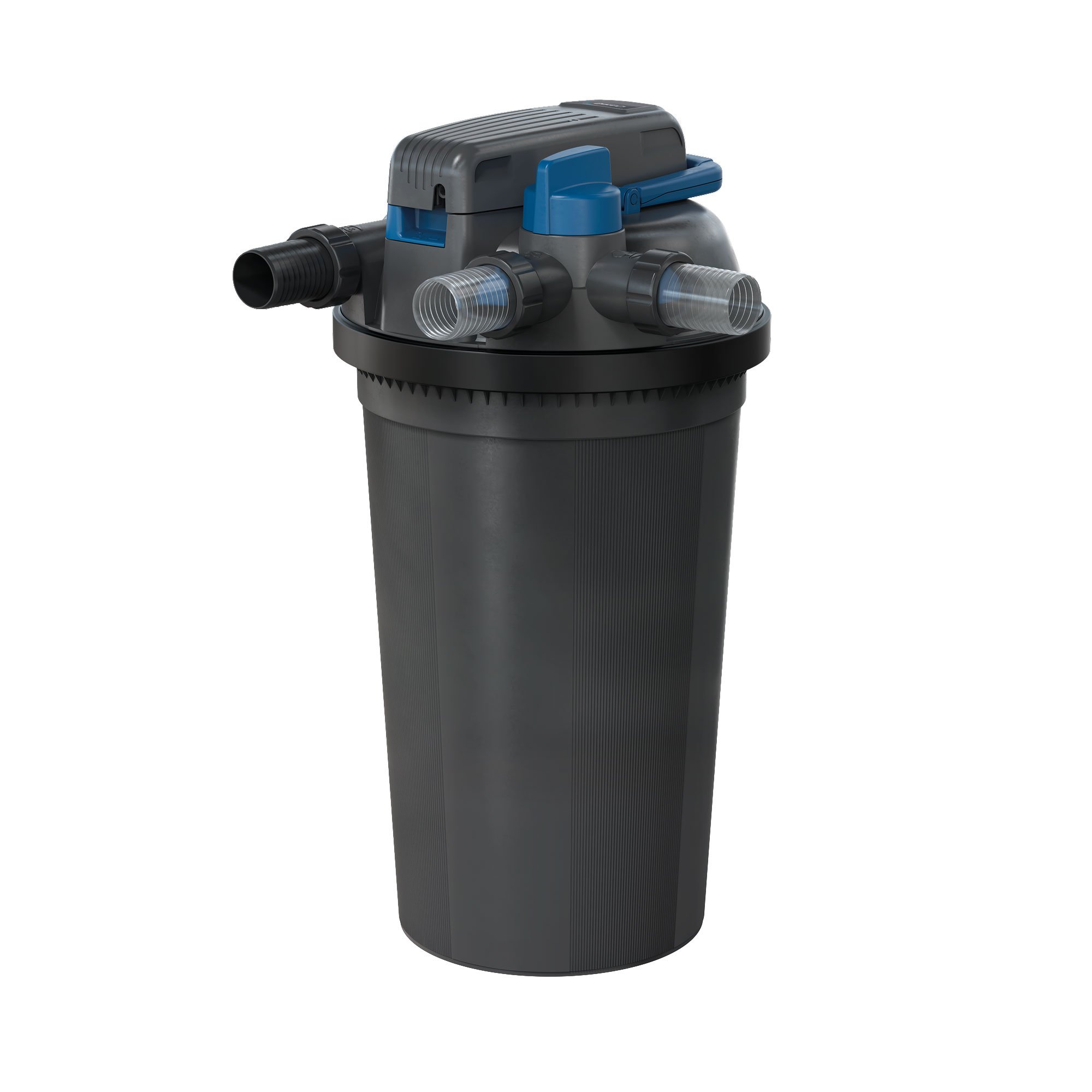

Oase's third generation of FiltoClears filter water with mechanical and biological filtration and ultraviolet clarification (UVC). It has a compact filter size with high filtration capacity and is perfect for Fountain, Formal Spillway, Pond-free and Water Garden applications.

Its high quality, impact resistant body can be buried up to the locking rings and concealed with an OASE FiltoCap. Three densities of replaceable filter foams, plates and extra supports improve cleaning function and ensure long service life.

2-way Valve backflushes filter and directs waste with Easy-Clean Technology, no need to open filter or remove the cover. Monitor UVC, filter performance and pollutant level and change UV lamp all without opening filter.

Newly developed bypass technology ensures constant water flow and prevents the filter from becoming clogged. FiltoClears come with a variety of fittings to accommodate a multitude of installations including metric and Sch40 fittings. When paired with the appropriate pump, this filter qualifies for the Clear Water Guarantee. T

The FiltoClear 3400 has a 24 watt UVC, a max flow of 2,400 gallons, and can filter up to 3,400 gallons. The FiltoClear 3400 has a light fish load of less than 3,400 gallons, a medium fish load of less than 1,700 gallons and a heavy fish load of less than 850 gallons. Replacement UVC bulbs and filter foams are available.

The FiltoClear 5200 has a 42 watt UVC, a max flow of 5,200 gallons, and can filter up to 5,200 gallons. The FiltoClear 5200 has a light fish load of less than 5,200 gallons, a medium fish load of less than 2,600 gallons and a heavy fish load of less than 1300 gallons. Replacement UVC bulbs and filter foams are available.

The FiltoClear 8200 has a 60 watt UVC, a max flow of 4,500 gallons, and can filter up to 8,200 gallons. The FiltoClear 8200 has a light fish load of less than 8,200 gallons, a medium fish load of less than 4,100 gallons and a heavy fish load of less than 2,050 gallons. Replacement UVC bulbs and filter foams are available.

Item: OA142 91669 3400
Volts: 120
Watts: 24
Safety Listing: cULus LISTED
UVC: 24W
Max Flow: 2,400 gph
Max Pressure: 2.9 psi / 7' of head
Max Pump Input Pressure: 7.25 psi / 17' of head
Cord Length: 16'
Hose Size: 1.5", 2"
Pond Volume: up to 3,400 gallons
Includes: 3 types of filter foams, UVC, metric step fittings, 1.5" / 2" Sch40 adapters
Warranty: 2-year
Dimensions: 15"L x 15"W x 19�"H

Item:OA143 91670 5200
Volts: 120
Watts: 42
Safety Listing: cULus LISTED
UVC: 42W
Max Flow: 3,450 gph
Max Pressure: 2.9 psi / 7' of head
Max Pump Input Pressure: 7.25 psi / 17' of head
Cord Length: 16'
Hose Size: 1.5", 2"
Pond Volume: up to 5,200 gallons
Includes: 3 types of filter foams, UVC, metric step fittings, 1.5" / 2" Sch40 adapters
Warranty: 2-year
Dimensions: 15"L x 15"W x 24"H

Item: OA144 91671 8200
Volts: 120
Watts: 60
Safety Listing: cULus LISTED
UVC: 60W
Max Flow: 4,500 gph
Max Pressure: 2.9 psi / 7' of head
Max Pump Input Pressure: 7.25 psi / 17' of head
Cord Length: 16'
Hose Size: 1.5", 2"
Pond Volume: up to 8,200 gallons
Includes: 3 types of filter foams, UVC, metric step fittings, 1.5" / 2" Sch40 adapters
Warranty: 2-year
Dimensions: 15"L x 15"W x 28�"H
